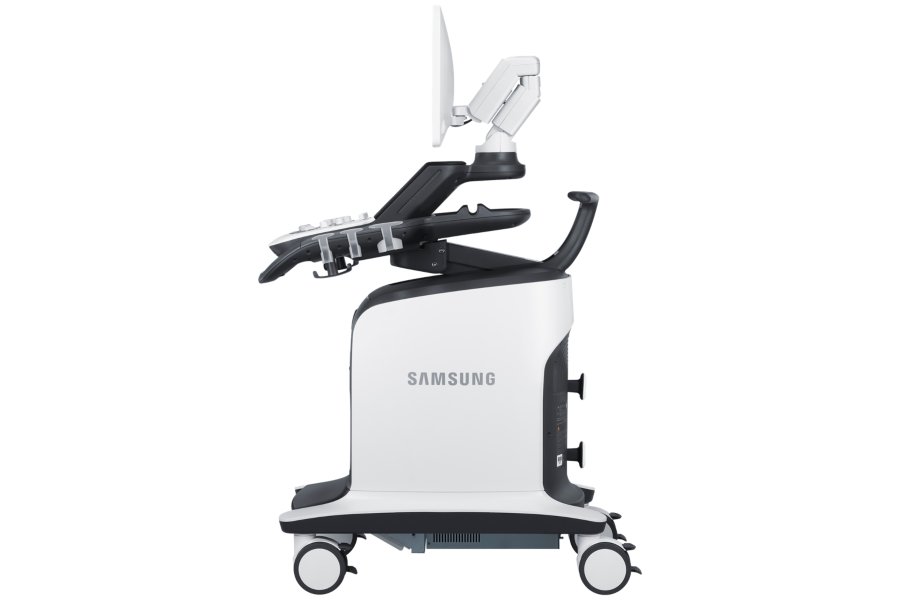

The HS70A was designed for hospital and private care - with you - the user in mind. The HS70A can be used in Radiology, Internal Medicine, Vascular Surgery, Urology, Gynecology, Pediatrics, Preventive Medicine, Orthopedics, Physiotherapy and the First Aid
Department for:
Arterial Analysis detects changes in vessels, providing measurement values such as stiffness and intima-media thickness. Since functional changes occur before morphological changes, this technology enables the diagnosis related to heart vessels at an early stage.
Quick Preset shows the 4 connected transducers and, for each of them, the most frequently used image settings. With one touch, the desired transducer and preset will be activated.
Realistic Vue™ displays high resolution 3D anatomy with details and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.
The S-Vue transducer provides a large bandwidth and high sensitivity both in transmit and receive capabilities. The combination of the new S-Vision Beamformer with the S-Vue transducer allows easy visualization of difficult to image pathologies. In addition, the ergonomically designed S-Vue transducer fits well in the hand and is easy to handle.
With the S-Vision imaging engine built on the RS80A with Prestige, the digital signals demonstrates clear, detailed resolution and tissue uniformity for various types of applications in general imaging.
By allowing accurate measurements with a single click, 2D NT simplifies first trimester fetal nuchal translucency (NT) measurements.
Sonographic parameters have been proven to be effective indicators when assessing in-vitro fertilization (IVF). HS70A's 5D Follicle measures the size and the status of each follicle to provide useful information in diagnosis.
This new harmonic technology makes a clearer image - near to far. Minimizing signal noise, S-Harmonic provides more uniformed ultrasound images. Combined with S-Vue Transducer and S-Vision Imaging Engine, S-Harmonic takes HS70A image quality one step higher.
S-Detect™ employs Breast Imaging-Reporting and Data System(BI-RADS®) scores for standardized analysis and classification of suspicious lesions. By simply clicking the suspected area, it draws the lesion area and provides the characteristics of the lesion and a recommendation on whether the lesion is benign or malignant.
Next to the B-Mode image, ElastoScan™ displays a color image that represents the elasticity of the tissue. E-Breast™ is a technology that calculates the strain ratio between the selected target and surrounding fatty tissue. E-Breast™ requires only one ROI to be selected by the user.
E-Thyroid™ provides an assessment of thyroid lesions by incorporating an index for suspicious areas. E-Thyroid™ images are generated using pulsations from the adjacent Carotid Artery, eliminating the need for manual transducer compression and offering greater consistency.
EZ-Exam+™ enables users to build or to use predefined protocols. It transforms the ultrasound investigation into a streamlined process. EZ-Exam+™ ensures the full investigation is performed, eliminating therisk of forgetting an image or loop capture,as well as measurement and transducer preset change.
For your efficiency, on the touch of the Advanced QuickScan™ button during a CCA ultrasound scan, the ROI position and scanning direction are automatically set.
Strain+ is a quantitative tool for global and segmental wall motion of the left ventricle (LV). In Strain+, three standard LV-views and a Bull's Eye are displayed in a Quad screen for easy and quick assessment of the LV-function.
The Stress Echo package includes wall motion scoring and reporting. It includes exercise Stress Echo, pharmacologic Stress Echo, diastolic Stress Echo and free programmable Stress Echo.
This exceptionally quiet device (35 dB or less) allows physical exams to be performed, including auscultation, while the ultrasound system is turned on.
To enhance the image, the HS70A features a 23-inch full high-definition (FHD) LED display, delivering superior image contrast on a large ultrasound display.
The 10.1-inch touch screen is highly sensitive and makes operating the ultrasound system smartly efficient.
For operator convenience, a gel warmer can be installed on both sides of the control panel.
